■ Introduction
There are two categories of clay drilling buckets:
1-   Single Cut Clay Bucket

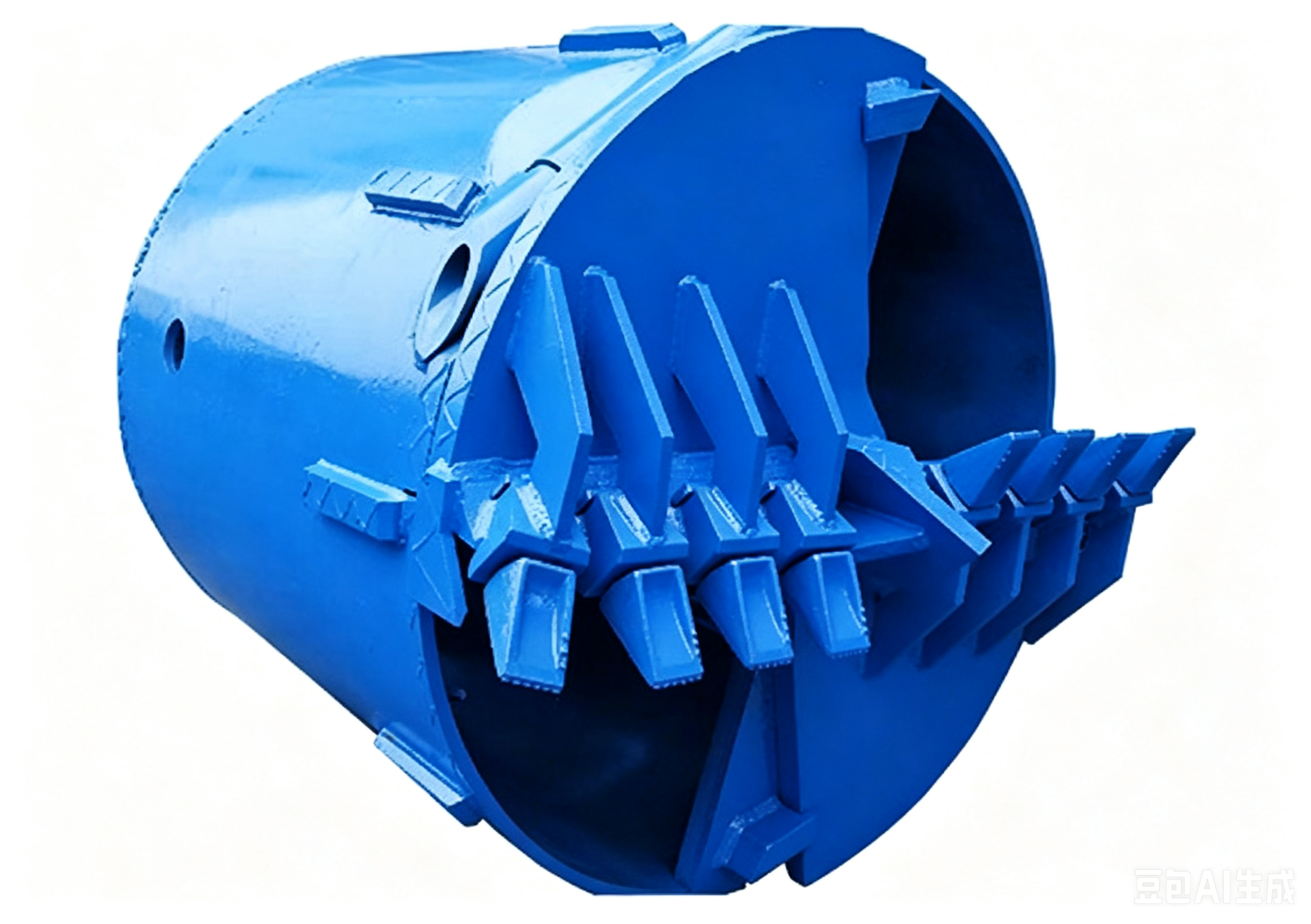

2-   Double Cut Clay Bucket
Drilling Diameter Range: 500~2500mm      Barrel Length:   1000~1500mm

■ Main Applications
1-  These buckets are suitable for drilling in clay, silt and loose to medium dense sand and gravel.
2-  Single cut buckets are recommended up to coarse gravel.
3-  Double cut buckets are mainly used for bigger diameter uncased boreholes.
4-  Single bottom buckets are used for clay layer and sticky formation.

■ Feature
1-  Cylindrical barrel & conical barrel(depends on customer demand)
2-  Fish-tail Pilot bits
3-  Throughout ventilation system to prevent the formation of vacuum during extraction
4-  Antiwear hard plates
5-  Kelly box size as per customer demand

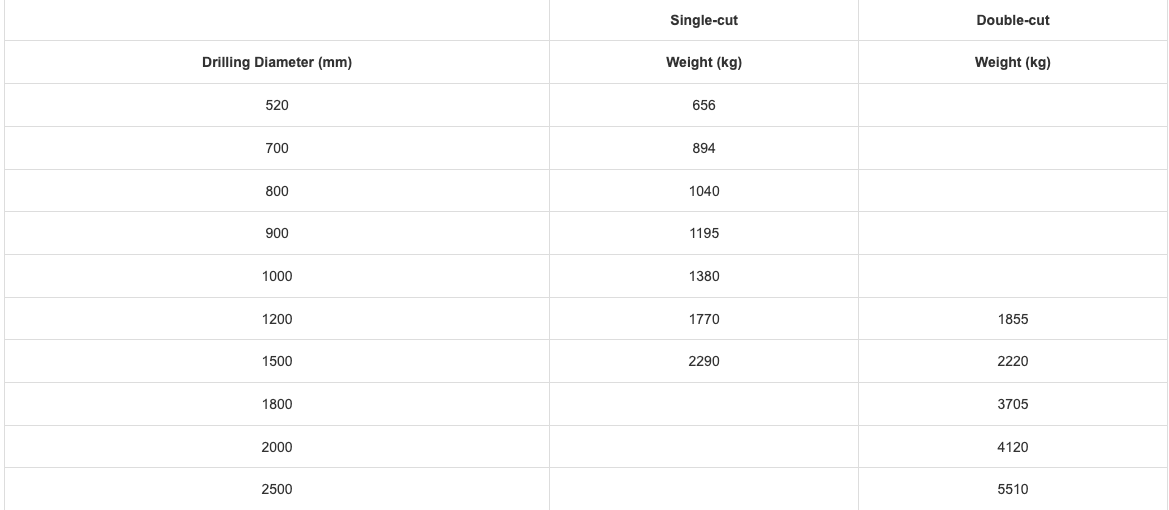

■ Parameters
