Centrifugal Rock/Soil Bucket

Introduction:

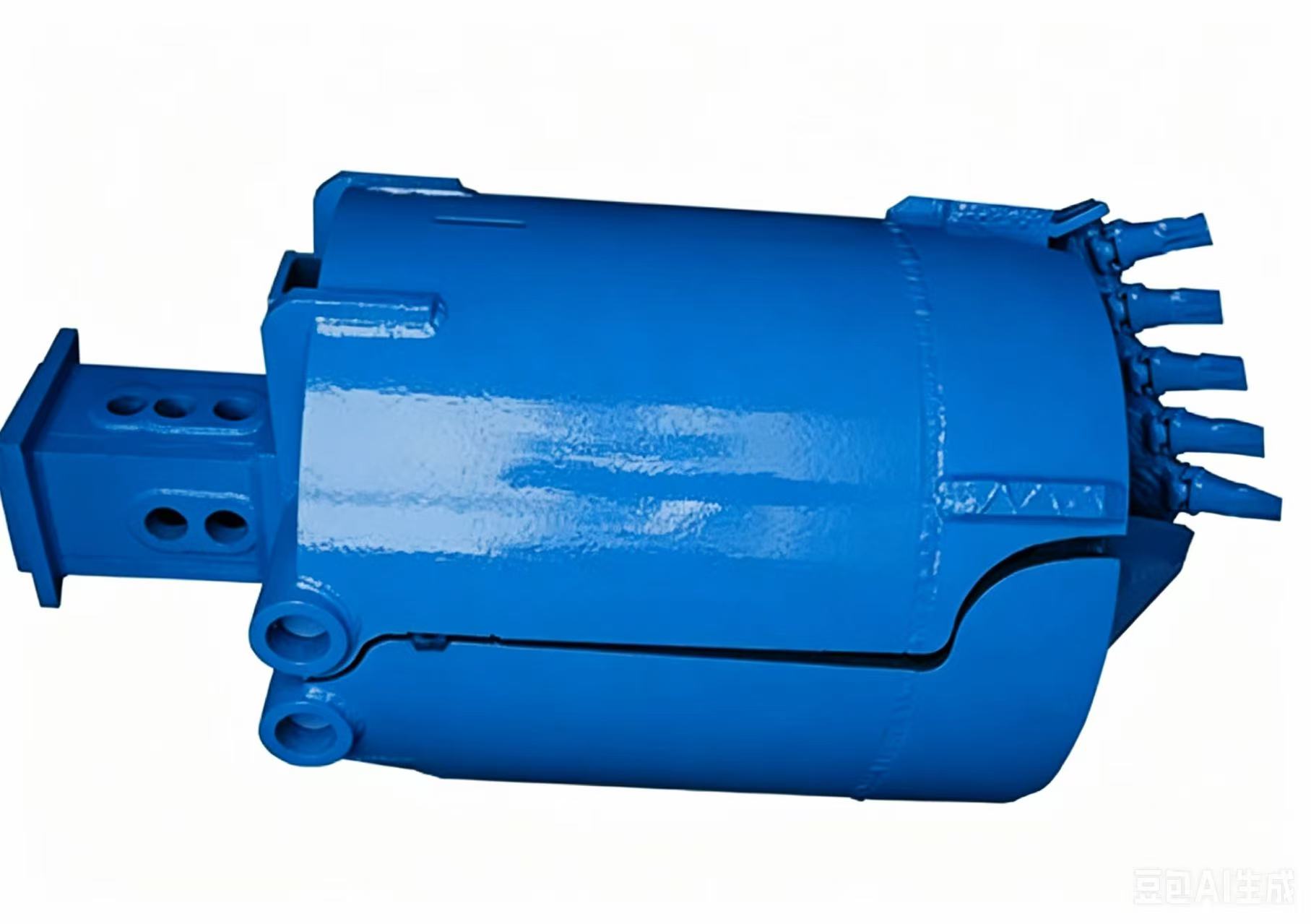

The Centrifugal Bucket is a specialized drilling tool designed for efficient soil and rock excavation in bore piling applications. Crafted from high-quality Q355B steel, it is engineered for superior performance in challenging conditions, whether drilling in clay, silt, sand, or gravel. This bucket features a robust, high-strength structure and advanced design features to ensure optimal operation and a longer lifespan.

Centrifugal Rock Bucket

Drilling Dia.	Shell Dia.	Shell Length	Shell Thickness	Teeth Qty	Weight
mm	mm	mm	mm	Pcs	kg
600	520	1200	25	7	836
700	620	1200	30	8	1100
800	680	1200	30	8	1240
900	780	1200	30	10	1395
1000	860	1200	30+40	10	1754
1200	1060	1200	30+40	12	2362
Other sizes can be manufactured as per customer demand.

Centrifugal Soil Bucket

Drilling Dia.	Shell Dia.	Shell Length	Shell Thickness	Teeth Qty	Weight
mm	mm	mm	mm	Pcs	kg
600	520	1200	25	4	849
700	620	1200	30	6	1140
800	680	1200	30	6	1274
900	780	1200	30	6	1437
1000	860	1200	30+40	8	1775
1200	1060	1200	30+40	10	2394
Other sizes can be manufactured as per customer demand.

Features

1. Large Inlet Open Shell Design: This design facilitates the easy dumping of spoil, significantly increasing drilling efficiency.

2. Super High Strength Structure: Reinforced with a durable guide plate to extend the bucket’s operational life.

3. Wear Protection: Wearing strips are strategically placed on the surface of the bucket for enhanced wear resistance, ensuring longevity in abrasive conditions.

4.Flexible Kelly Box Sizes: Available with optional Kelly Box sizes of 130mm, 150mm, or 200mm to accommodate various drilling machines.
